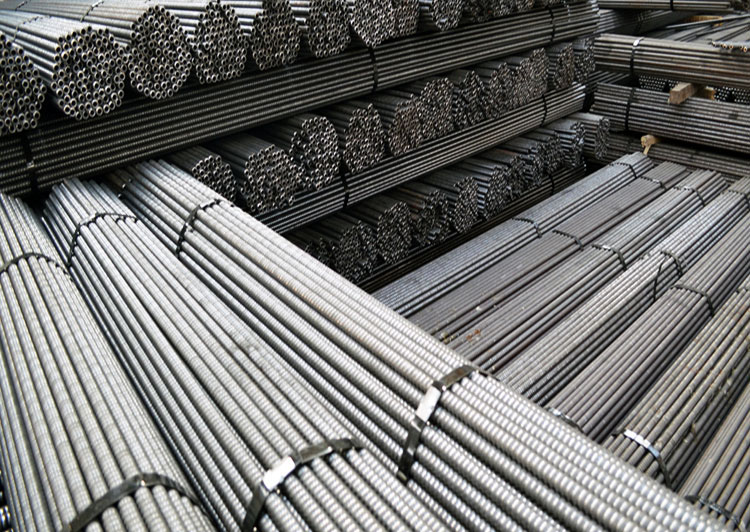

SELF DRILLING ANCHOR SYSTEM

Self Drilling Anchor System consists of the following parts:

  • Single-use drill bits, which are available either hardened or with carbide inserts
  • Steel couplings, with a continuous inside thread
  • Steel nuts
  • Steel plates
  • Hollow Anchor Bar (Self Drilling - Ibo Bolt)

Ibo Bulons

CHARACTERISTICS OF SELF DRILLING SYSTEMS

Advantages and Characteristics

  • Fast drilling and placing due to drilling, anchor installation and grouting in a single operation
  • Neither separate anchor installation nor removal of casing and drill rods
  • Similar installation methods for all ground conditions
  • Choice of drill bits for different ground conditions
  • The hollow core not only serves for flushing with air or water during drilling, but aLso for grouting the anchor tendon
  • FLexibiLity in length by using coupLers
  • Ability to work with small drill rigs without casing in restricted headroom conditions
  • Accommodation of needs for enhanced protection against corrosion upon request.

COUPLING

It is the element used to attach two bolts to each other. The anchor bolt can be lengthened to the designed depth while drilling.

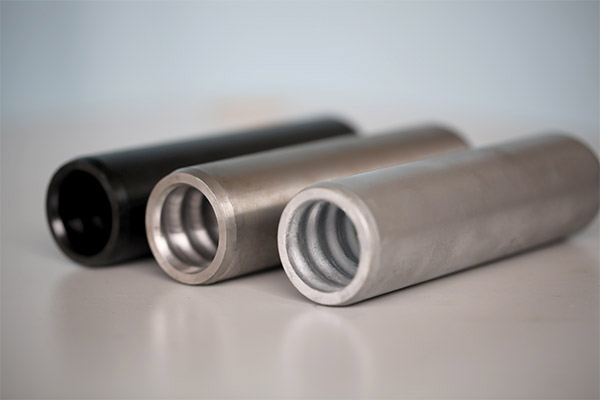

Anchor Couplings

NUT

It is the element used to attach two bolts to each other. It can transfer the stress of surrounding rock to the backing plate.

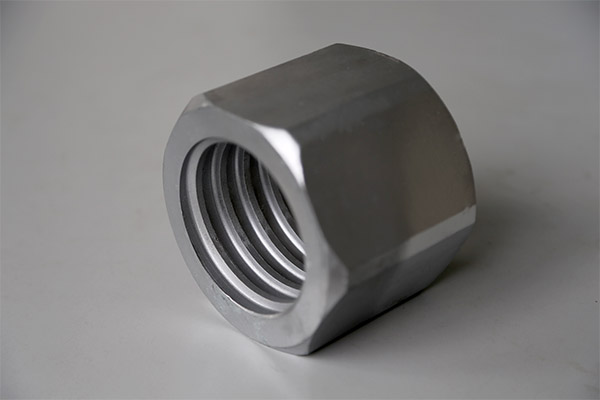

Self Drilling Anchor Nuts

ANCHOR PLATES

Plates are Hot rolled steel parts with a width of 10 cm to 20 cm, a thickness of about 1-2 cm generally. It can bear greater stress of surrounding rock.

Self Drilling Anchor Plates

SELF DRILLING ANCHOR SPECIFICATIONS

Anchor Type Unit R32L R32N R32S R38N R5IL R5IN T76N T76S
Outer Diameter mm 32 32 32 38 51 51 76 76
Tensile Strength kN 200 280 360 500 500 800 1600 1900
Yield Strength kN 160 230 280 400 450 630 1200 1500
Weight kg/lfm 2,7 3,4 4,1 6,1 7 8,4 15 19,7

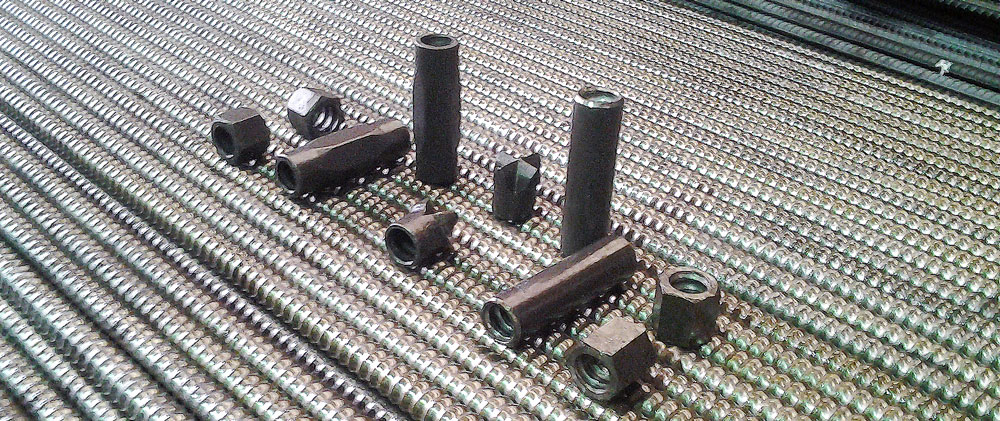

Self Drilling Anchor Accessories
